WPS (Router Button) Connection

  1. Tap WPS (Push button method).

  2. Tap OK.

  3. Press and hold the WPS button on the wireless router.

    Note

    • For more on pressing the WPS button, see the wireless router manual.

  4. Tap OK within 2 minutes.

    WPS (Push button method) screen: Select OK

    If a different screen appears, see "Troubleshooting."

  5. When the following screen appears, tap OK.

    Completion screen (Connected to the wireless router.)

    If a different screen appears, see "Troubleshooting."

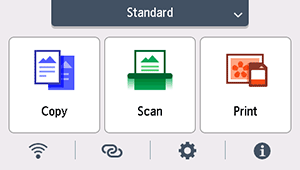

  6. Select (HOME).

    The network connection setup is now complete.

    Once connection is complete, Wi-Fi ON icon appears at the lower left of the screen.

If performing setup without using computer, smartphone, etc.:

  1. Download and install software.

    After installing the software, start the software, and then follow the on-screen instructions to proceed with setup.

If performing setup using computer, smartphone, etc.:

  1. After checking the following, click the close button on the Web browser to close this guide.

    Windows

    In the taskbar, click the application software you have been using for setup, and then follow the on-screen instructions to proceed with setup.

    macOS

    Click Setup icon in the Dock, and then follow the on-screen instructions to proceed with setup.

    Smartphone/tablet

    Return to the app you have been using for setup on the smartphone, and then follow the on-screen instructions to proceed with setup.
